Description

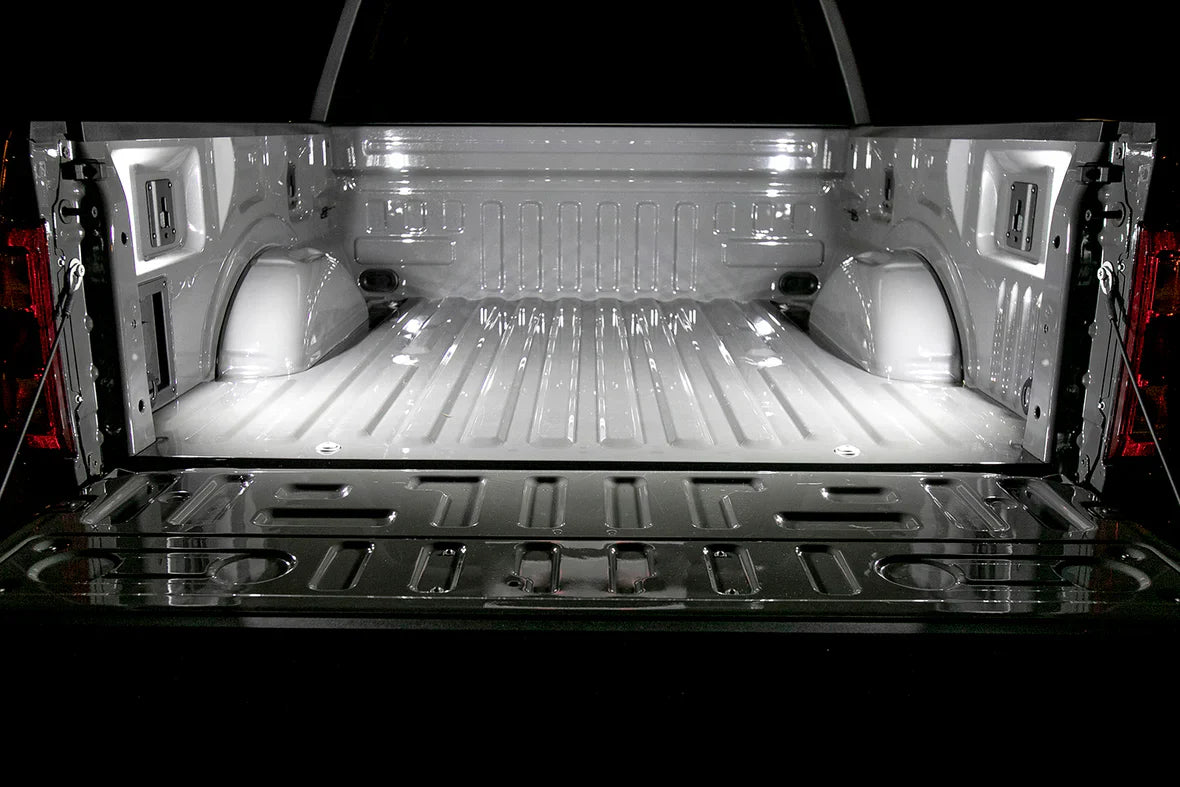

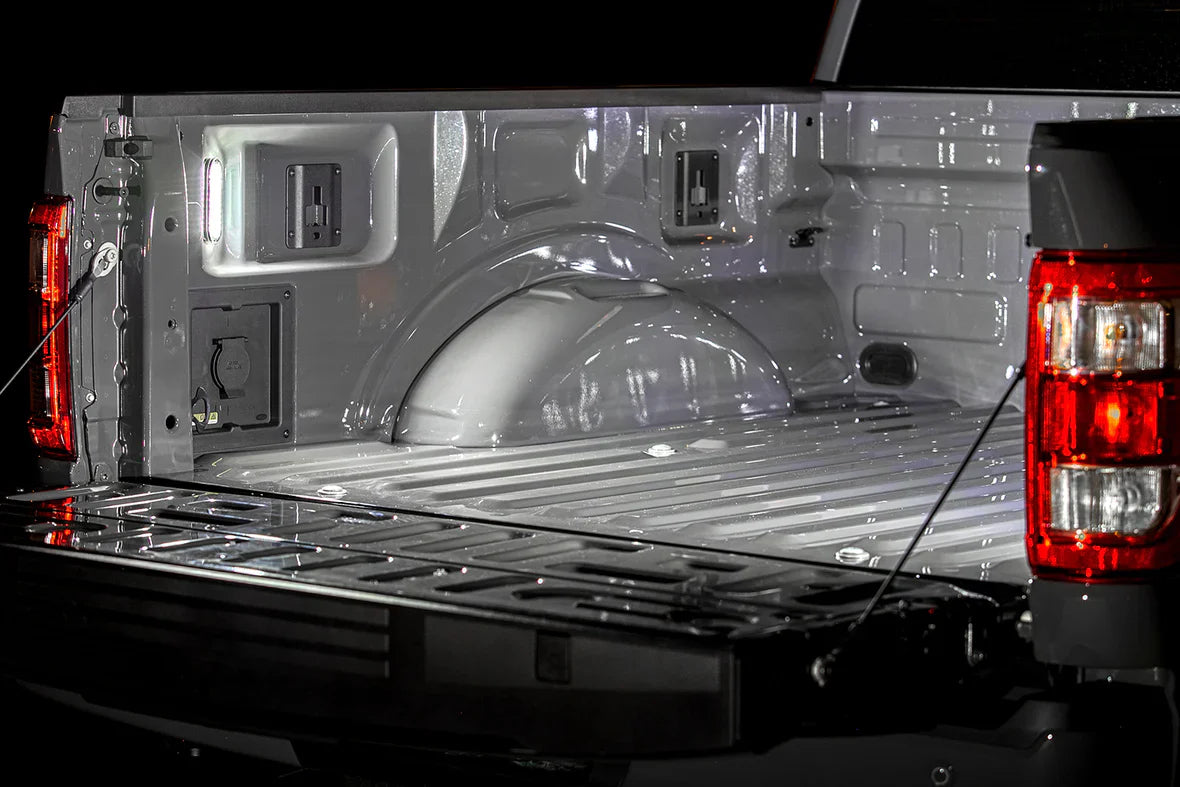

▶Want to add OEM-Style Bed Lighting to your F-150? The Bed Lighting Kit adds a premium OEM-Style cargo box lighting system to your 2015+ F-150 in minutes! This system gives you the quality that is normally only found from the factory, while providing an easy to install system. Our kit is completely Plug-N-Play for some trucks – please be sure to determine if your truck is pre-wired before ordering by reading instructions below!
Features and Benefits:
- Lamps illuminate when you open the door or unlock the doors with your Key Fob, and fade-to-off automatically when the truck is started or doors are locked. The lights can also be controlled with the over-cab light button located on the headlight switch inside the passenger compartment.
- LED lamps come ready for a plug and play installation. Our LED lamps are IP67 rated making them completely waterproof against high pressure water spray. Their UV treated Polycarbonate lens make them rugged and dependable.
- Included is a Plug-N-Play adapter that allows you to seamlessly connect your LED lights to the factory wiring harness. All trucks equipped with the Trailer Assist Lamp, as well as select trucks with a factory-installed tow package are completely Plug and Play. Please see below for instructions on how to determine if your truck is pre-wired!*
- LED’s are a White 6000k color temperature. White perfectly matches the factory trailer assist lamp.
- LED lamps, wiring and a complete instruction manual are all included. This kit was specifically engineered to fit the 2015+ F-150!
- Unlike the OEM Ford Kit, no trips to the dealership for BCM re-programming are necessary!
Fitment
- 2015-2020 Ford F-150**
*Your truck must be pre-wired for the Y-Adapter to provide power to your Bed Lighting. All trucks have the connector present, but not all trucks are pre-wired. On at least one of the plugs, the following wires should be present:
2015-2017 = Pin #6 (Black with Yellow Stripe) and Pin #7 (Purple) – Please note, there is a Brown wire with Purple stripe that looks similar.
2018-2020 = Pin #6 (Black with Yellow Stripe) and Pin #7 (White with Green Stripe) – Please note, there are TWO White with Green wires on one side. You must have BOTH.
**In rare instances, some 2015 & 2020 trucks may have a black connector in place of the normal connector shown. This product will work with minor modification – see instruction manual for details.
